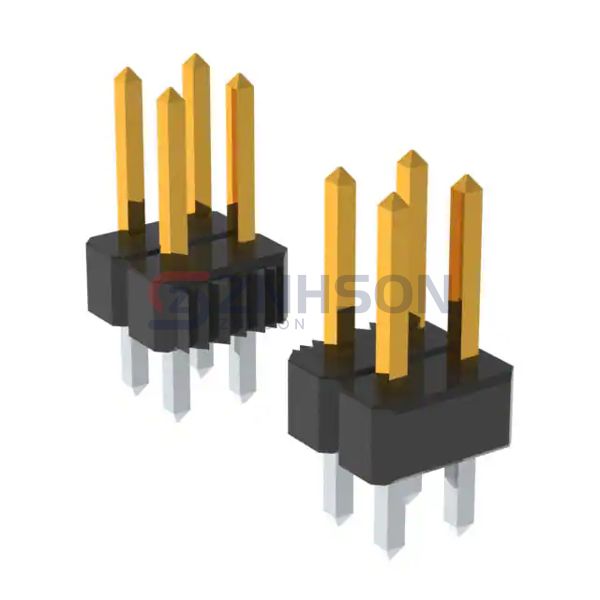

PCC05DAAN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 10POS 2.54MM
$1.25
Available to order
Reference Price (USD)
1+
$1.24740
500+
$1.234926
1000+
$1.222452
1500+
$1.209978
2000+
$1.197504
2500+
$1.18503
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PCC05DAAN from Sullins Connector Solutions is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the PCC05DAAN offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Sullins Connector Solutions for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
330-10-108-40-027000
TE Connectivity AMP Connectors
9-146285-0-19
TE Connectivity AMP Connectors
644488-3
Mill-Max Manufacturing Corp.
399-10-164-10-009000
Hirose Electric Co Ltd
HIF3F-40PA-2.54DSA(71)
TE Connectivity AMP Connectors
5-146290-4
Amphenol ICC (FCI)
77311-822-22LF

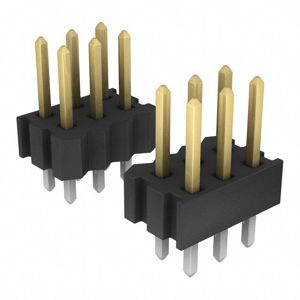

TE Connectivity AMP Connectors
3-103817-8

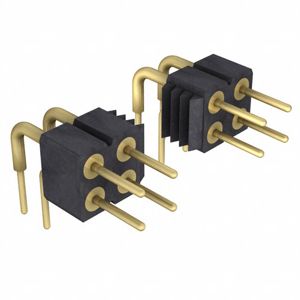

Preci-Dip
832-10-028-20-001101

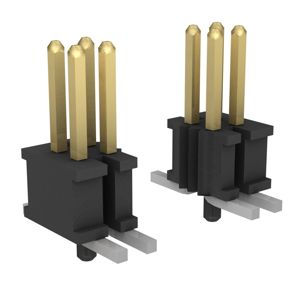

Samtec Inc.
