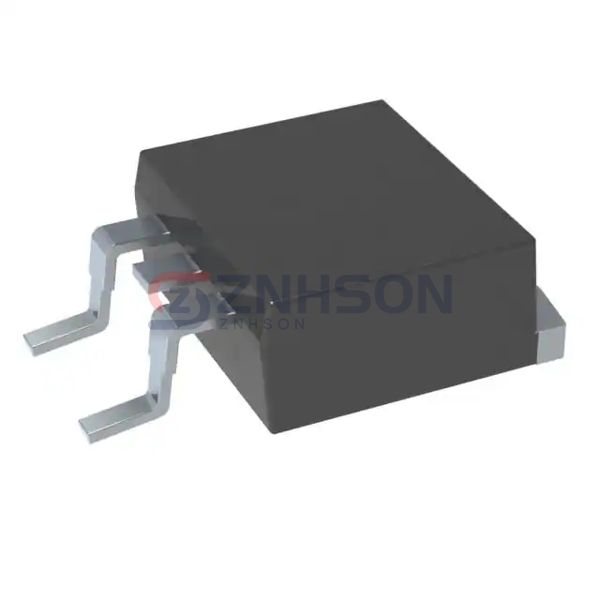

PCDB10120G1_T0_00001
Panjit International Inc.
Panjit International Inc.
1200V SIC SCHOTTKY BARRIER DIODE
$8.27
Available to order
Reference Price (USD)
1+
$8.27000
500+
$8.1873
1000+
$8.1046
1500+
$8.0219
2000+
$7.9392
2500+
$7.8565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PCDB10120G1_T0_00001 from Panjit International Inc. is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Panjit International Inc.'s dedication to quality means the PCDB10120G1_T0_00001 meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io): 10A (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.7 V @ 10 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 100 µA @ 1200 V
- Capacitance @ Vr, F: 529pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263
- Operating Temperature - Junction: -55°C ~ 175°C
