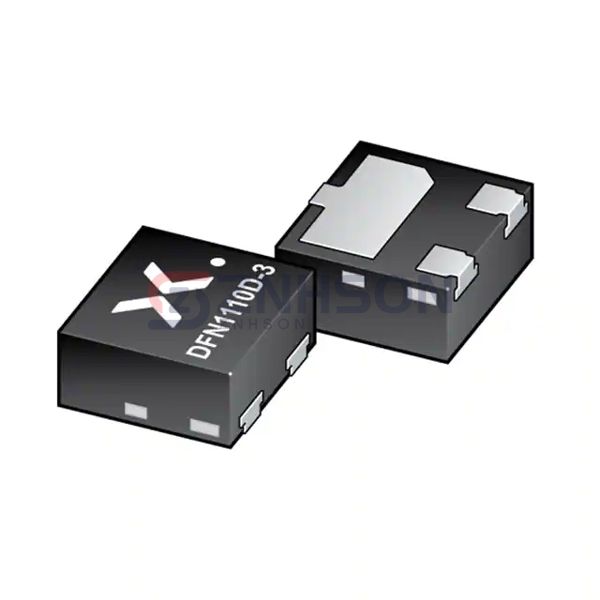

PDTA114EQB-QZ
Nexperia USA Inc.
Nexperia USA Inc.
PDTA114EQB-Q/SOT8015/DFN1110D-
$0.30
Available to order
Reference Price (USD)
1+
$0.30000
500+
$0.297
1000+
$0.294
1500+
$0.291
2000+
$0.288
2500+
$0.285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Nexperia USA Inc.'s space-saving PDTA114EQB-QZ. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Nexperia USA Inc. combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA
- Frequency - Transition: 180 MHz
- Power - Max: 340 mW
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1110D-3
