PDTB114ETR
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS PNP 0.46W
$0.33
Available to order
Reference Price (USD)
1+
$0.33000
500+
$0.3267
1000+
$0.3234
1500+
$0.3201
2000+
$0.3168
2500+
$0.3135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Nexperia USA Inc.'s PDTB114ETR redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: PNP - Pre-Biased
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 140 MHz
- Power - Max: 320 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: TO-236AB
Related Products
NXP USA Inc.
PDTC143TE,115
Diodes Incorporated
DDTA143XUA-7-F
Rohm Semiconductor
DTC143TKAT146
NXP USA Inc.

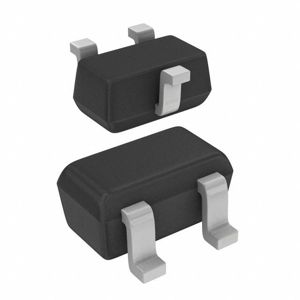

PDTA114YE,115
Toshiba Semiconductor and Storage
RN2416,LXHF
Diodes Incorporated
DDTB123YC-7-F
onsemi
MMUN2133LT1G
onsemi

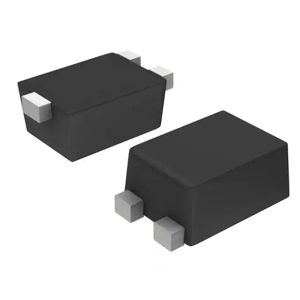

NSBA123JF3T5G
