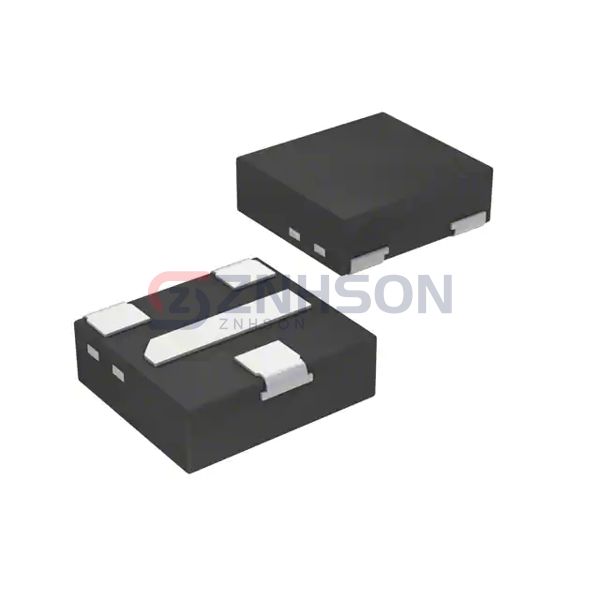

PDTC144EQAZ
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS NPN 3DFN
$0.05
Available to order
Reference Price (USD)
5,000+
$0.03800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PDTC144EQAZ by Nexperia USA Inc. sets new benchmarks for single BJT transistors. Featuring moisture-resistant packaging (MSL-3 rated) and 8ns switching speed, it's the preferred choice for: Drone motor controllers Solar microinverters POS terminal printers Backed by Nexperia USA Inc.'s global technical support and 5-year warranty for peace of mind.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 47 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 150mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 1µA
- Frequency - Transition: 230 MHz
- Power - Max: 280 mW
- Mounting Type: Surface Mount
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1010D-3
Related Products
Diodes Incorporated
DDTC143EUA-7
Toshiba Semiconductor and Storage
RN1102,LXHF(CT
Toshiba Semiconductor and Storage
RN1411,LXHF
Toshiba Semiconductor and Storage
RN1313,LXHF
Panasonic Electronic Components
UNR5214G0L
Nexperia USA Inc.
PDTD143EUX
onsemi
DTC115TET1G
Rohm Semiconductor
DTA124EETL
Nexperia USA Inc.

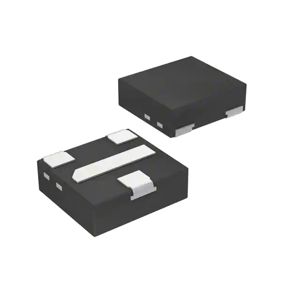

PDTA143XQCZ
