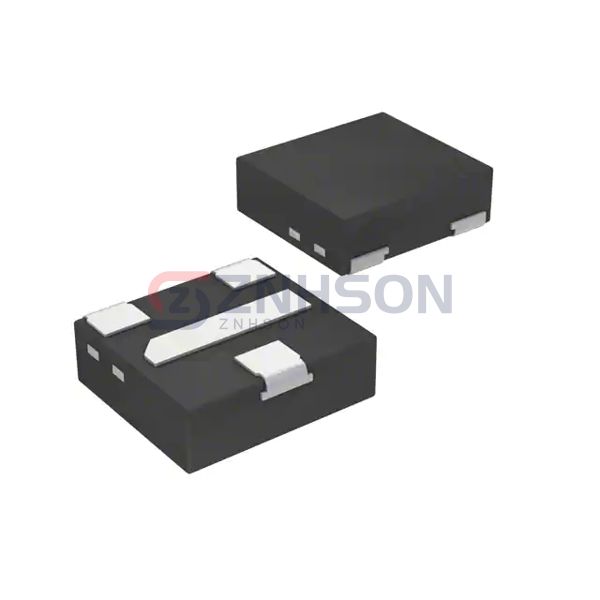

PDTD143EQAZ
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS NPN 3DFN
$0.06
Available to order
Reference Price (USD)
5,000+
$0.05080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineers choose PDTD143EQAZ for its exceptional linearity in amplification circuits. Nexperia USA Inc.'s pre-biased BJT transistor demonstrates 0.1 A ultra-low cutoff current, making it indispensable for medical equipment and precision instrumentation. The TO-92 package ensures easy integration into existing designs. Discover why global OEMs prefer this solution for telecom infrastructure and renewable energy systems.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 4.7 kOhms
- Resistor - Emitter Base (R2): 4.7 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 60 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 210 MHz
- Power - Max: 325 mW
- Mounting Type: Surface Mount
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1010D-3
