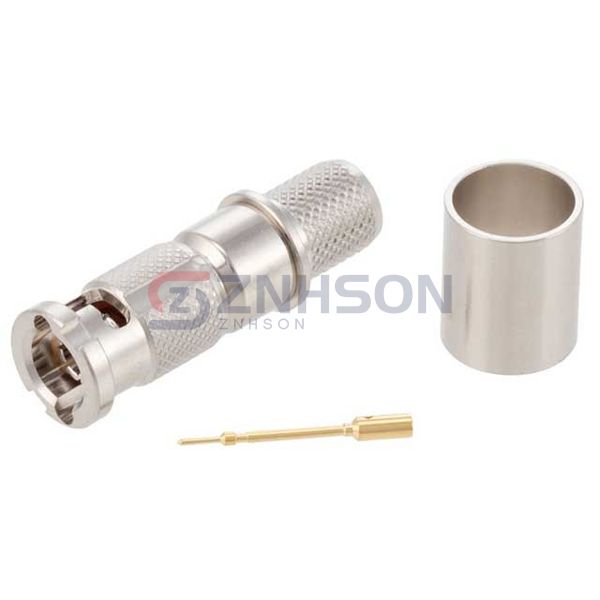

PE40002
Pasternack
Pasternack
HD-BNC(M) SOLDER ATTACH
$11.99
Available to order
Reference Price (USD)
1+
$11.99000
500+
$11.8701
1000+
$11.7502
1500+
$11.6303
2000+
$11.5104
2500+
$11.3905
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the PE40002 from Pasternack sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The PE40002 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: BNC, HD
- Connector Type: Plug, Male Pin
- Contact Termination: Crimp
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: RG-6, Belden 1694A, 4694R
- Fastening Type: Bayonet Lock
- Frequency - Max: 12 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Brass
