PE45609
Pasternack
Pasternack

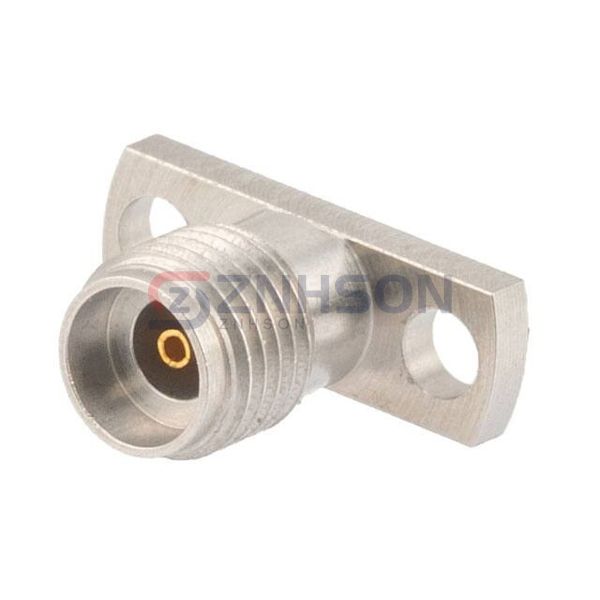

2.92(F) FLD RPL 2HOLE 0.020" PIN
$45.39
Available to order
Reference Price (USD)
1+
$45.39000
500+
$44.9361
1000+
$44.4822
1500+
$44.0283
2000+
$43.5744
2500+
$43.1205
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PE45609 from Pasternack represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The PE45609 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: 2.92mm
- Connector Type: Receptacle, Female Socket
- Contact Termination: Compression
- Shield Termination: Screw
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Flange
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: Field Replaceable, For Hermetically Sealed Pin
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
