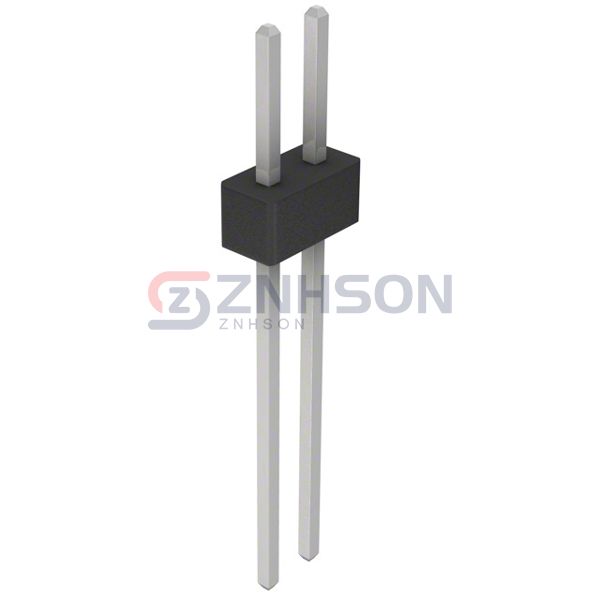

PEC01DAFN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 2POS
$1.63
Available to order
Reference Price (USD)
1+
$1.63000
10+
$1.45900
100+
$1.20120
500+
$0.94948
1,000+
$0.81507
5,000+
$0.74357
10,000+
$0.71498
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the PEC01DAFN rectangular connector header from Sullins Connector Solutions for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Sullins Connector Solutions is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Discontinued at Digi-Key
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: -
- Number of Positions: 2
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.620" (15.75mm)
- Overall Contact Length: 0.950" (24.13mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
