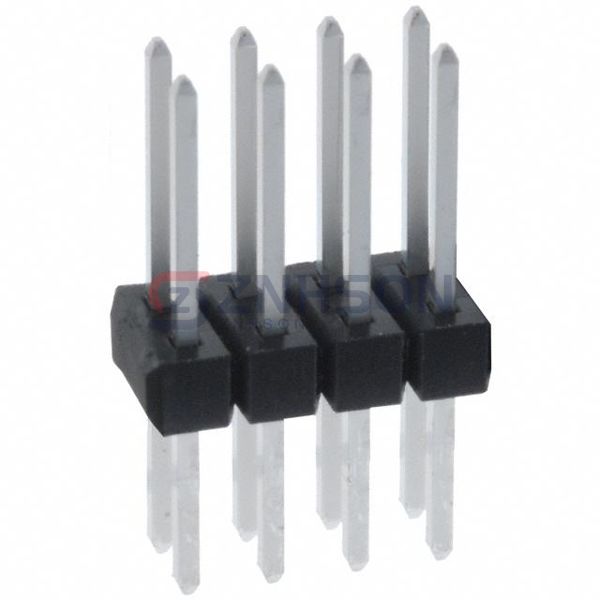

PEC04DFBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 8POS 2.54MM
$0.76
Available to order
Reference Price (USD)
1+
$0.76000
10+
$0.70800
25+
$0.63720
50+
$0.56640
100+
$0.54280
250+
$0.49560
500+
$0.47200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC04DFBN male pin header by Sullins Connector Solutions provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Sullins Connector Solutions guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.638" (16.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
