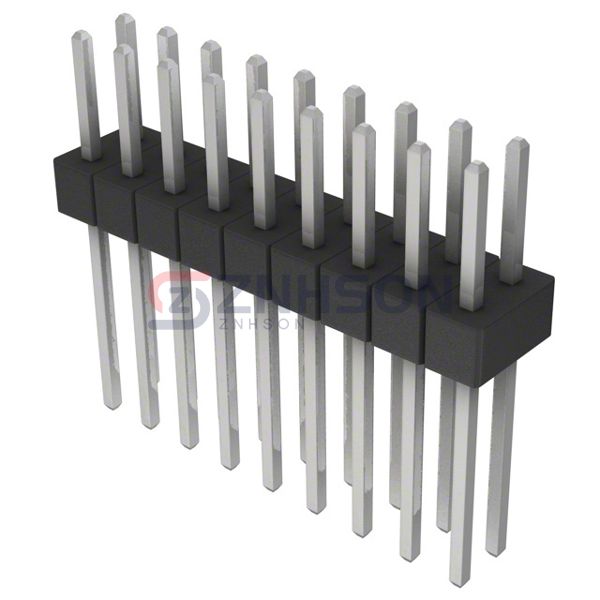

PEC09DADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 18POS 2.54MM
$1.68
Available to order
Reference Price (USD)
1+
$1.68000
10+
$1.52900
25+
$1.43520
50+
$1.37280
100+
$1.31040
250+
$1.18560
500+
$1.09200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC09DADN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PEC09DADN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
JST Sales America Inc.
B22B-PUDSS-1(LF)(SN)
Samtec Inc.
TLW-110-05-T-D
Samtec Inc.
MMT-131-02-L-SH
Samtec Inc.
FTS-150-01-L-DV
Molex
43810-0046
Molex
0022032031
Samtec Inc.
TFM-110-22-L-D-A-P-TR
Samtec Inc.

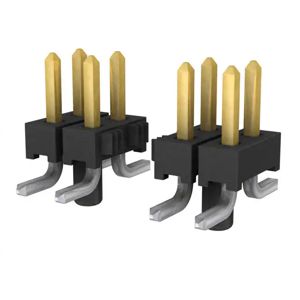

TMM-117-01-L-D-SM-A-P
