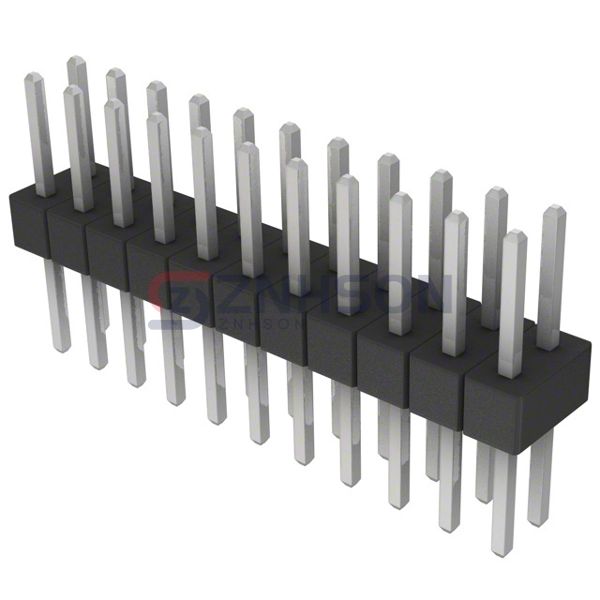

PEC11DABN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 22POS 2.54MM
$1.36
Available to order
Reference Price (USD)
1+
$1.36000
10+
$1.23100
25+
$1.15520
50+
$1.10520
100+
$1.05490
250+
$0.95444
500+
$0.87908
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PEC11DABN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PEC11DABN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 22
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.230" (5.84mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
