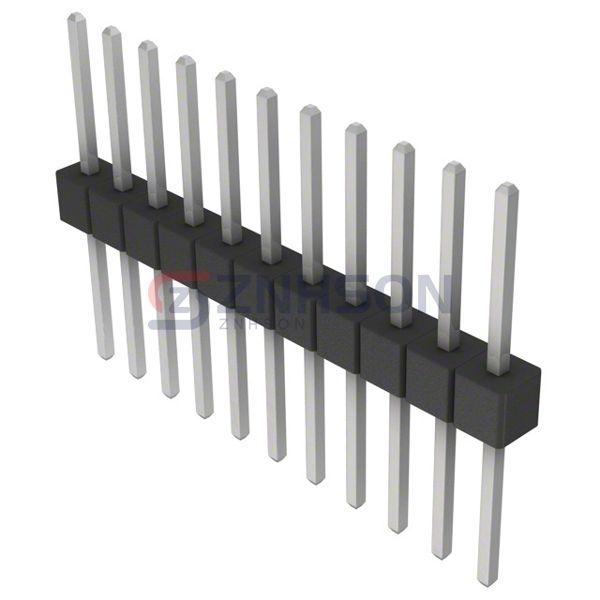

PEC11SFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 11POS 2.54MM
$1.21
Available to order
Reference Price (USD)
1+
$1.21000
10+
$1.06600
25+
$1.00320
50+
$0.96140
100+
$0.91960
250+
$0.83600
500+
$0.75240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC11SFCN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC11SFCN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 11
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0416620114
Sullins Connector Solutions
PEC09DFAN
Würth Elektronik
64902021022
Mill-Max Manufacturing Corp.

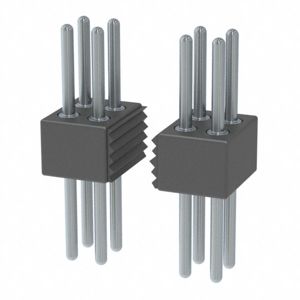

852-40-070-10-001000
Samtec Inc.

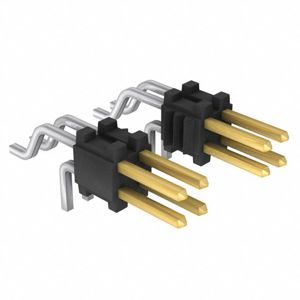

FTSH-145-02-F-MT
Samtec Inc.

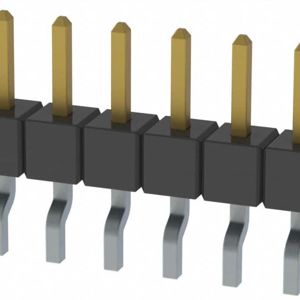

MMT-114-01-S-SH
Hirose Electric Co Ltd

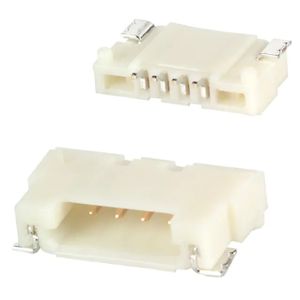

DF14-4P-1.25H(52)
TE Connectivity AMP Connectors

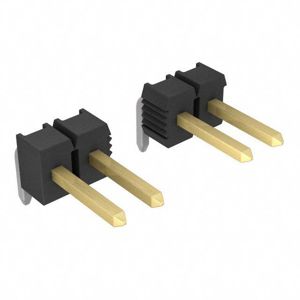

9-103765-0-27
TE Connectivity AMP Connectors

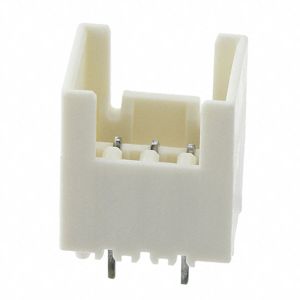

1-1971839-3
