PEC14DAAN
Sullins Connector Solutions
Sullins Connector Solutions

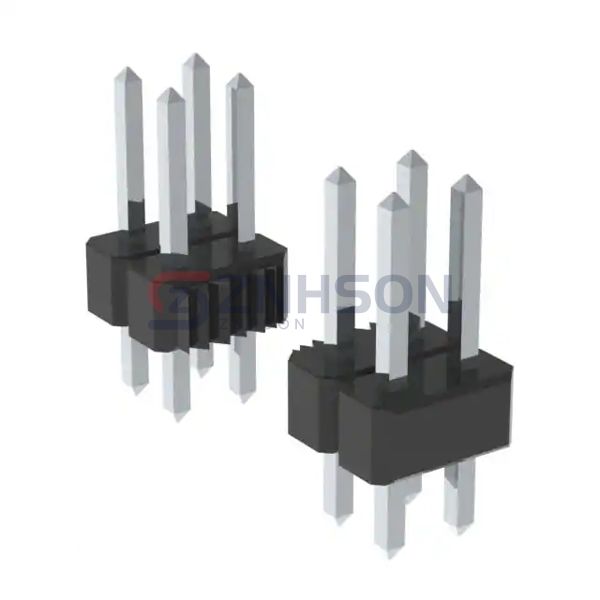

CONN HEADER VERT 28POS 2.54MM
$1.27
Available to order
Reference Price (USD)
1+
$1.27000
10+
$1.11900
25+
$1.05280
50+
$1.00900
100+
$0.96510
250+
$0.87736
500+
$0.78960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PEC14DAAN rectangular connector header from Sullins Connector Solutions. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PEC14DAAN is perfect for automotive, industrial, and consumer electronics. Sullins Connector Solutions ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 28
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
