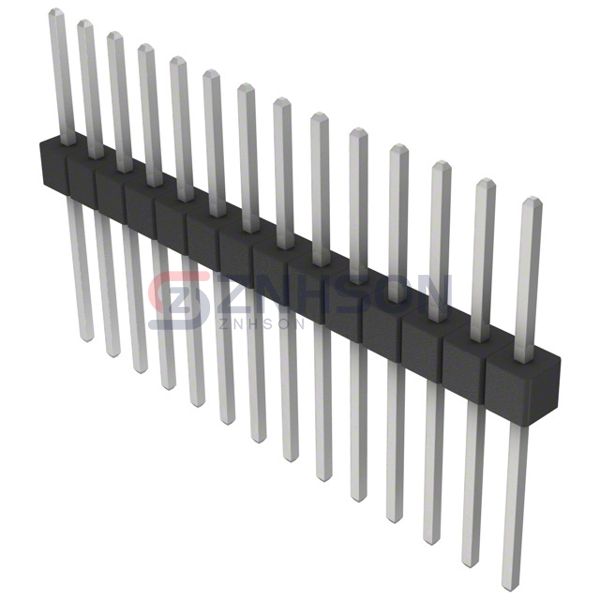

PEC14SFDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 14POS 2.54MM
$1.54
Available to order
Reference Price (USD)
1+
$1.54000
10+
$1.39500
25+
$1.30960
50+
$1.25260
100+
$1.19560
250+
$1.08172
500+
$0.99632
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the PEC14SFDN rectangular connector header from Sullins Connector Solutions. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the PEC14SFDN meets the highest industry standards. Sullins Connector Solutions provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.838" (21.29mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-107-02-FM-MT
TE Connectivity AMP Connectors
6-103639-4
Harwin Inc.
M80-8280622
Samtec Inc.
TSM-105-01-F-SV-P
Samtec Inc.

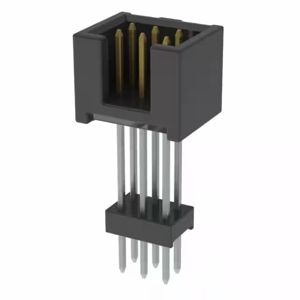

ZSS-103-05-S-D-810
3M

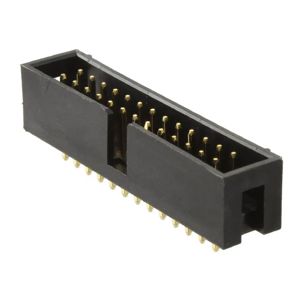

30326-6002HB
Samtec Inc.

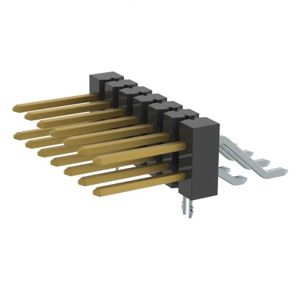

TSM-107-02-LM-DH-LC-TR
Samtec Inc.

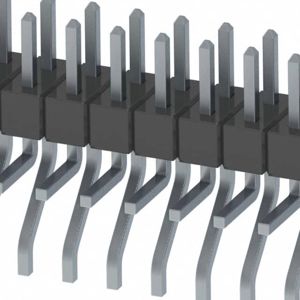

MMT-111-01-T-MT
