PEC15DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 30POS 2.54MM
$4.01
Available to order
Reference Price (USD)
1+
$4.01000
10+
$3.85200
25+
$3.53120
50+
$3.37060
100+
$3.21000
250+
$2.80876
500+
$2.72850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PEC15DAHN rectangular connector header from Sullins Connector Solutions, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the PEC15DAHN adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Sullins Connector Solutions guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-108-01-S-DV-LC-P-TR
Amphenol ICC (FCI)
77317-112-42LF
Amphenol ICC (FCI)
77311-124-30LF
Amphenol ICC (FCI)
10127820-1821LF
Samtec Inc.
MTSW-108-07-G-D-205
Harwin Inc.
M80-5004042
Amphenol ICC (FCI)
53611-S16-8LF
Preci-Dip

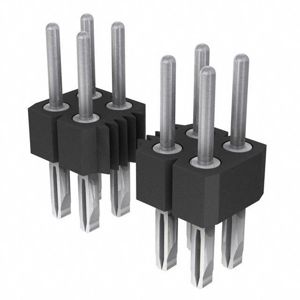

802-80-072-66-001101
