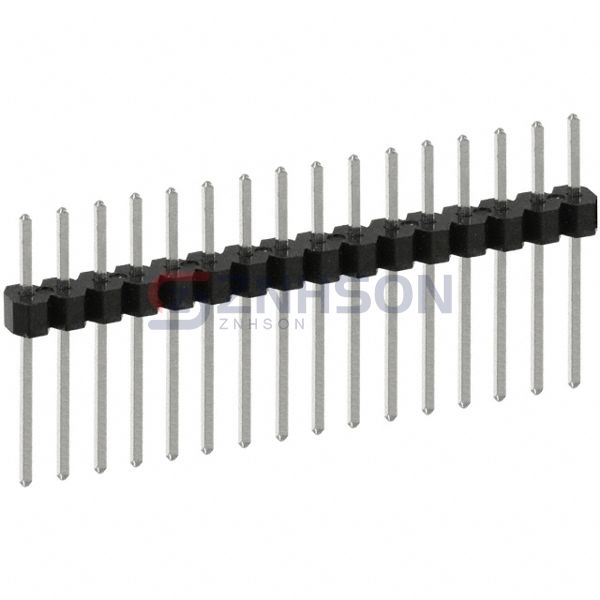

PEC16SAEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 16POS 2.54MM
$1.61
Available to order
Reference Price (USD)
1+
$1.61000
10+
$1.46300
25+
$1.37400
50+
$1.31420
100+
$1.25440
250+
$1.13492
500+
$1.04532
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the PEC16SAEN rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PEC16SAEN ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-108-08-T-S
Amphenol ICC (FCI)
20021221-00020T1LF
Molex
0039306167
CNC Tech
3210-26-001-12-00
Samtec Inc.
FTSH-115-01-SM-DH-C
TE Connectivity AMP Connectors
1924678-1
TE Connectivity AMP Connectors
3-794678-4
Samtec Inc.
TMM-118-01-S-D-SM-A
Amphenol ICC (FCI)

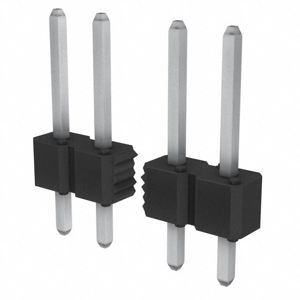

77311-424-35LF
