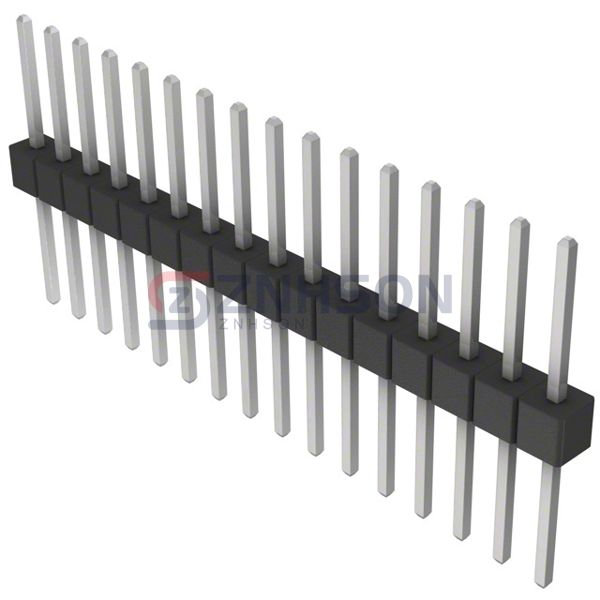

PEC16SFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 16POS 2.54MM
$1.64
Available to order
Reference Price (USD)
1+
$1.64000
10+
$1.49000
25+
$1.39840
50+
$1.33760
100+
$1.27680
250+
$1.15520
500+
$1.06400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC16SFCN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Harwin Inc.
M80-5432042
Amphenol ICC (FCI)
10119109-372010LF
TE Connectivity AMP Connectors
5-146288-9
Molex
0878332820
Samtec Inc.
TSW-136-14-G-S
Samtec Inc.
FTS-110-04-L-DV-A-P-TR
Oupiin
2011-1X05G00RB
Samtec Inc.
TSM-110-01-T-DV-LC-TR
Harwin Inc.

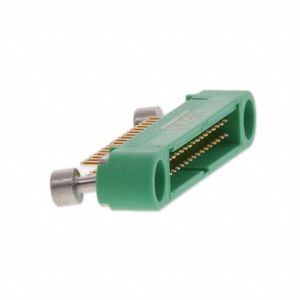

G125-MV13405M3P
