PEC17SAEN
Sullins Connector Solutions
Sullins Connector Solutions

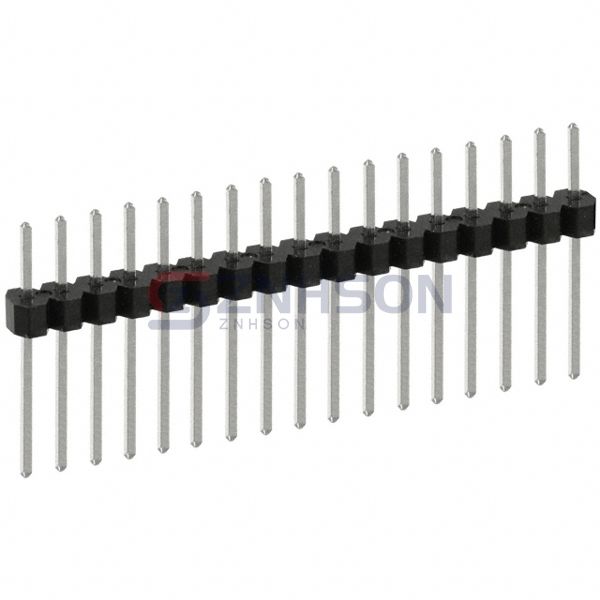

CONN HEADER VERT 17POS 2.54MM
$1.71
Available to order
Reference Price (USD)
1+
$1.71000
10+
$1.55500
25+
$1.45960
50+
$1.39620
100+
$1.33280
250+
$1.20588
500+
$1.11068
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC17SAEN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PEC17SAEN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 17
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.520" (13.21mm)
- Overall Contact Length: 0.850" (21.59mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
