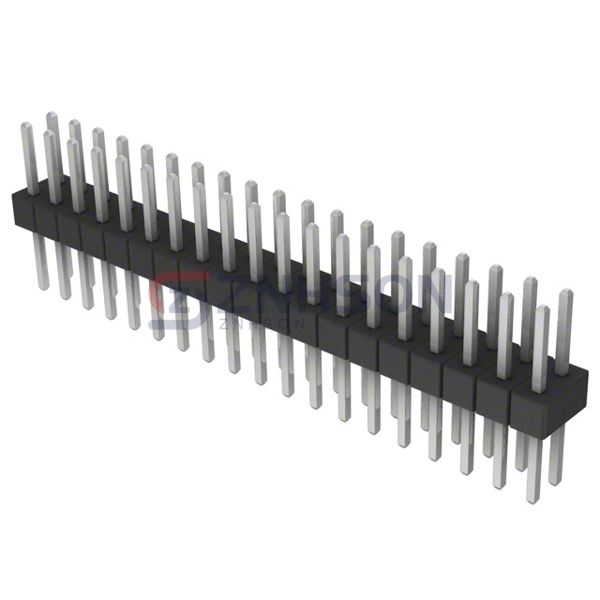

PEC19DABN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 38POS 2.54MM
$2.34
Available to order
Reference Price (USD)
1+
$2.34000
10+
$2.12600
25+
$1.99560
50+
$1.90880
100+
$1.82210
250+
$1.64856
500+
$1.51842
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC19DABN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.230" (5.84mm)
- Overall Contact Length: 0.560" (14.22mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77315-118-11LF
TE Connectivity Erni
234464
Samtec Inc.
MMT-112-01-S-MT
CWB Electronics Inc.
PH-9AWJ UL (WT)
Samtec Inc.
BKT-115-03-F-V-S
Preci-Dip
890-18-037-10-001101
Samtec Inc.
TSM-116-05-T-DV
Samtec Inc.

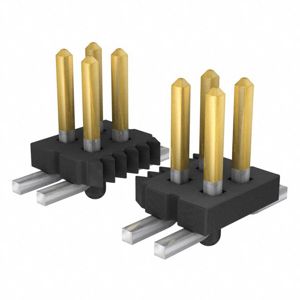

FTS-132-01-L-DV-A-P-TR

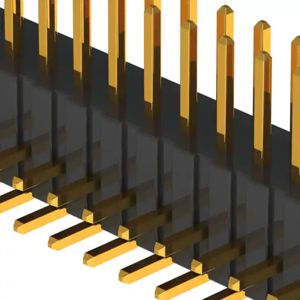

Omron Electronics Inc-EMC Div
