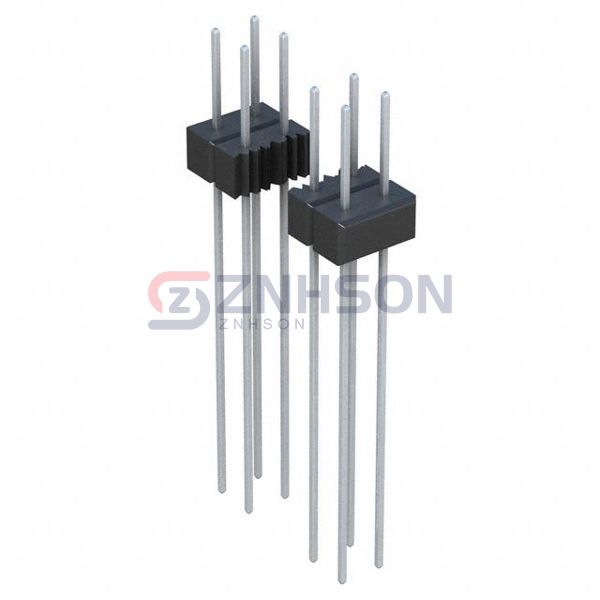

PEC21DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 42POS 2.54MM
$5.62
Available to order
Reference Price (USD)
1+
$5.62000
10+
$5.39300
25+
$4.94360
50+
$4.71880
100+
$4.49400
250+
$3.93224
500+
$3.81990
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC21DAHN by Sullins Connector Solutions is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Sullins Connector Solutions delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 42
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
0436500205
Samtec Inc.
TFM-130-32-LM-D-A-K
Samtec Inc.
EHT-113-01-S-D-RA-01
TE Connectivity AMP Connectors
3-641213-6
Samtec Inc.
TMMH-104-01-S-D
Samtec Inc.
TSM-116-01-L-DV-LC-P-TR
Molex
1054301103

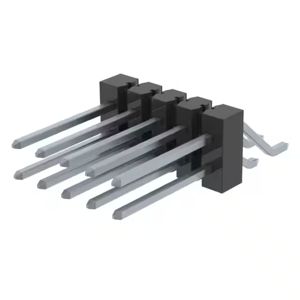

Samtec Inc.
TSM-105-03-T-DH

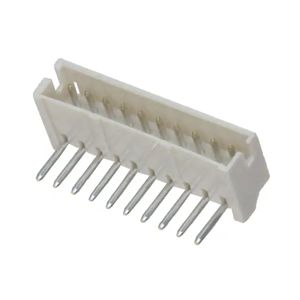

Molex
