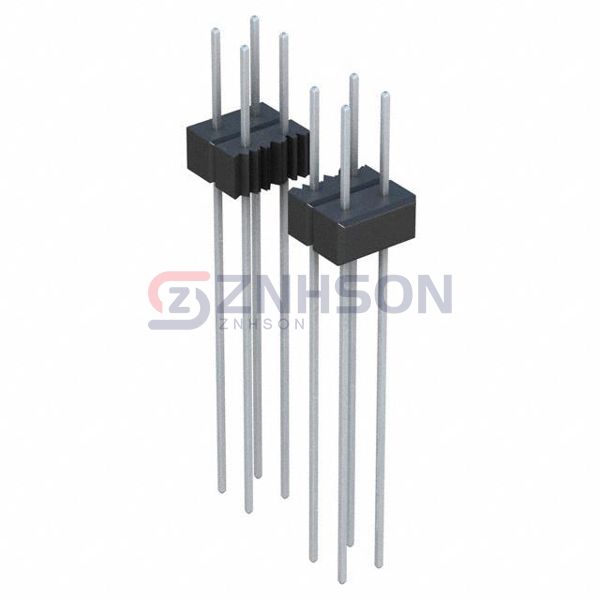

PEC27DAHN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 54POS 2.54MM
$6.93
Available to order
Reference Price (USD)
1+
$6.93000
10+
$6.64500
25+
$6.06680
50+
$5.77800
100+
$5.48910
250+
$4.91132
500+
$4.62240
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC27DAHN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PEC27DAHN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 54
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.820" (20.83mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-105-02-H-DV
Samtec Inc.
TSM-113-02-T-SV-002-P-TR
Samtec Inc.
TMMS-130-01-F-Q-RA-FS

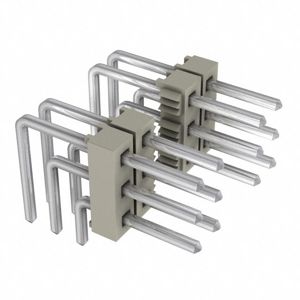

Samtec Inc.
HTSW-109-08-T-T-RA

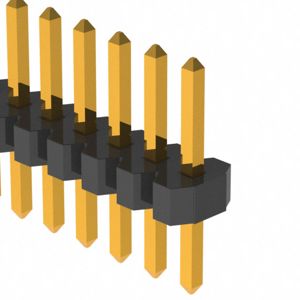

Sullins Connector Solutions
GRPB421VWVN-RC

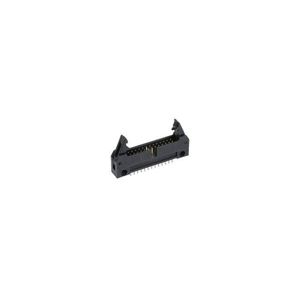

Molex
90663-1301

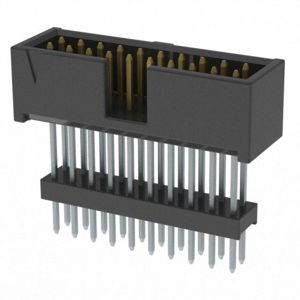

Samtec Inc.
ZSS-110-04-S-D-765
TE Connectivity AMP Connectors
3-1969570-2

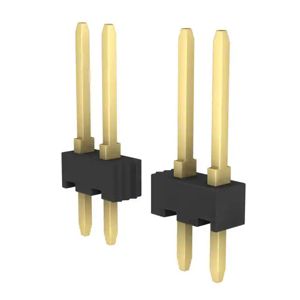

TE Connectivity AMP Connectors
