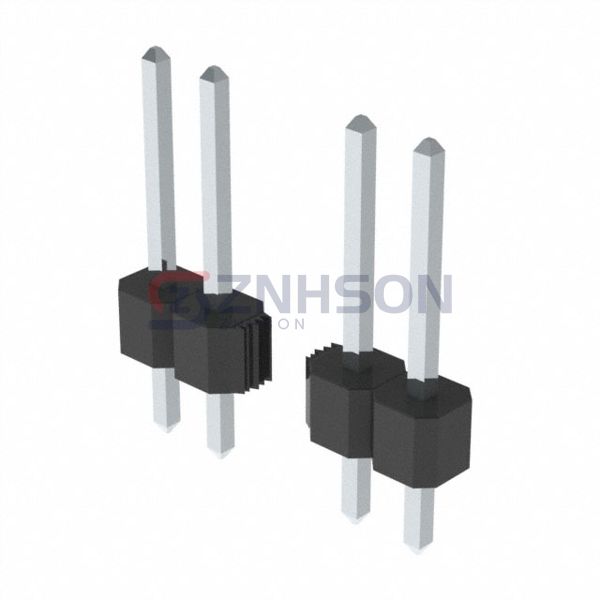

PEC31SFAN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 31POS 2.54MM
$1.90
Available to order
Reference Price (USD)
1+
$1.90000
10+
$1.72200
25+
$1.61600
50+
$1.54580
100+
$1.47560
250+
$1.33508
500+
$1.22968
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC31SFAN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PEC31SFAN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 31
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.538" (13.67mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
