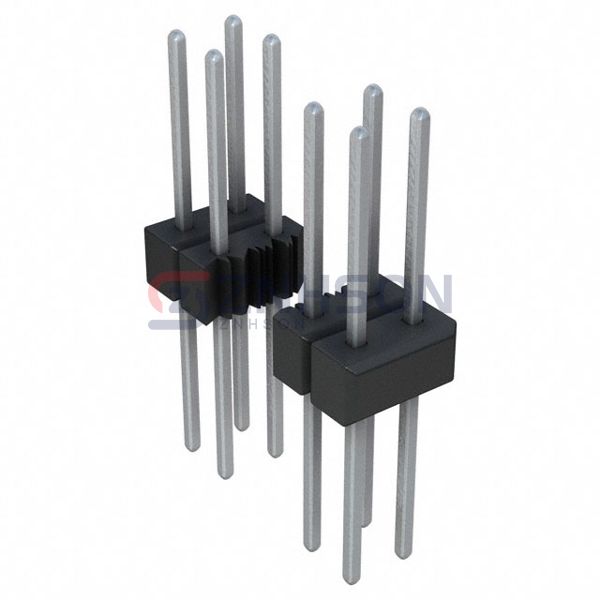

PEC33DFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 66POS 2.54MM
$5.31
Available to order
Reference Price (USD)
1+
$5.31000
10+
$5.09500
25+
$4.67080
50+
$4.45840
100+
$4.24600
250+
$3.71524
500+
$3.60910
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the PEC33DFCN rectangular connector header by Sullins Connector Solutions. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the PEC33DFCN ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Sullins Connector Solutions for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 66
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-125-01-G-D-SM-TR
Mill-Max Manufacturing Corp.
350-10-151-00-006000
Preci-Dip
892-80-020-20-001101
TE Connectivity AMP Connectors
5-146309-2
TE Connectivity AMP Connectors
4-103327-0-12
Samtec Inc.
FTS-113-04-L-DV-P-TR
Mill-Max Manufacturing Corp.
852-40-068-10-001000
Samtec Inc.

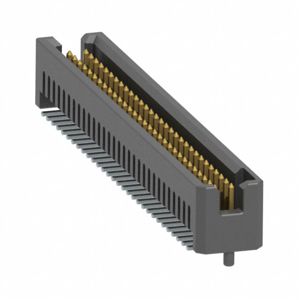

TFM-130-02-L-D-A-K
