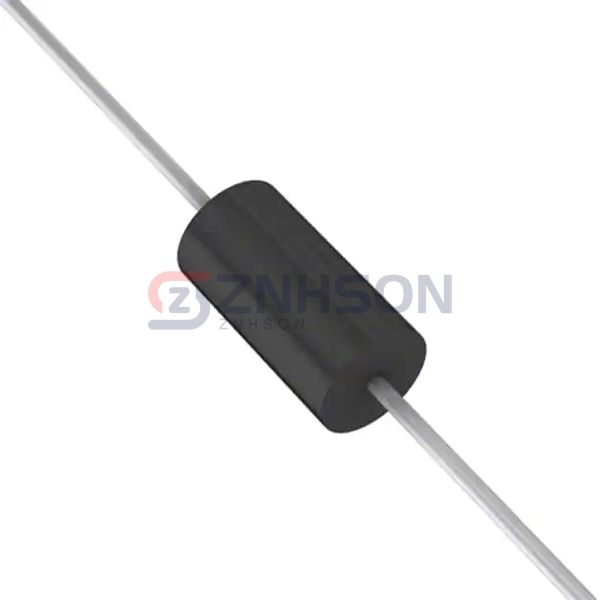

PG156R_R2_00001
Panjit International Inc.
Panjit International Inc.
GLASS PASSIVATED JUNCTION FAST S
$0.31
Available to order
Reference Price (USD)
1+
$0.31000
500+
$0.3069
1000+
$0.3038
1500+
$0.3007
2000+
$0.2976
2500+
$0.2945
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PG156R_R2_00001 from Panjit International Inc. is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Panjit International Inc.'s PG156R_R2_00001 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600 V
- Current - Average Rectified (Io): 1.5A
- Voltage - Forward (Vf) (Max) @ If: 1.3 V @ 1.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 250 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 600 V
- Capacitance @ Vr, F: 35pF @ 4V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-204AC, DO-15, Axial
- Supplier Device Package: DO-15
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Panjit International Inc.
BD5100YS_S2_00001
Microchip Technology
JANS1N5621US/TR
Solid State Inc.
1N1189RA
Vishay General Semiconductor - Diodes Division
VS-ETX1506STRL-M3
Vishay General Semiconductor - Diodes Division
RS3BHE3_A/H
Micro Commercial Co
SD107WS-TP
Vishay General Semiconductor - Diodes Division

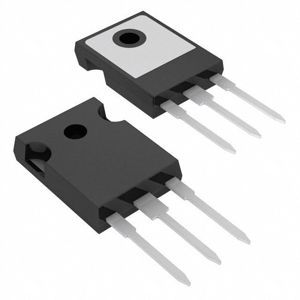

VS-60APU06HN3
Vishay General Semiconductor - Diodes Division

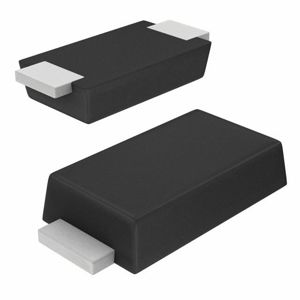

SE30AFJHM3/6B
Microchip Technology

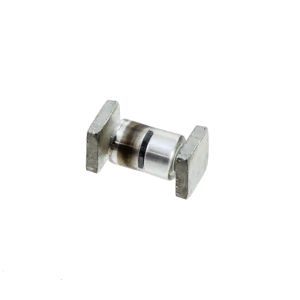

JAN1N6642US/TR
