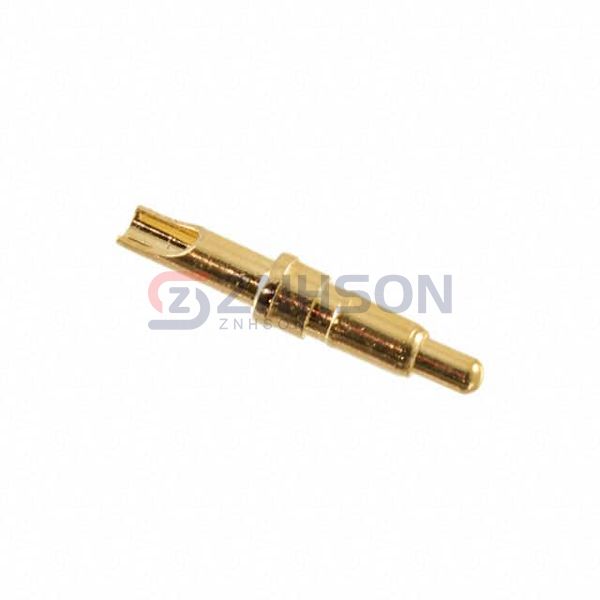

PH-MVS-4360
Adam Tech
Adam Tech
CONTACT SPRING LOADED SLDR CUP
$1.01
Available to order
Reference Price (USD)
1+
$0.96000
10+
$0.84500
25+
$0.79520
50+
$0.76200
100+
$0.72890
250+
$0.66260
500+
$0.59634
1,000+
$0.53008
2,500+
$0.48038
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the future of test interface technology with Adam Tech's PH-MVS-4360 MEMS-based Spring Loaded Contacts. This revolutionary Pressure Connectors category combines silicon micromachining with traditional spring mechanics for unprecedented density (400 contacts/sq.in) and signal fidelity. The PH-MVS-4360 series enables wafer-level testing of 3D-IC stacks and advanced packaging technologies like chiplets. Critical applications span photonics alignment systems, flexible hybrid electronics validation, and MEMS sensor characterization. Research institutions leverage these nano-precision contacts for quantum dot measurement and 2D material research. With 10nm repeatability and 0.1pF parasitic capacitance, PH-MVS-4360 redefines what's possible in microscopic interconnect solutions.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Through Hole, Solder Cup
- Maximum Working Height: 0.236" (6.00mm)
- Recommended Working Height: 0.197" (5.00mm)
- Minimum Working Height: 0.181" (4.60mm)
- Pad Layout Dimension: Circular - 0.079" (2.00mm) (TH)
- Operating Force - Initial: 70gf
- Operating Force - Mid Compression: -
- Plunger Size: 0.039" (1.00mm) Dia
- Features: -
- Mating Cycles: 1000000
- Contact Material: Brass
- Contact Finish: Gold
- Contact Finish Thickness: -
