PH1-16-UA
Adam Tech
Adam Tech
CONN HEADER VERT 16POS 2.54MM
$0.28
Available to order
Reference Price (USD)
1+
$0.24000
10+
$0.22800
100+
$0.15830
500+
$0.13398
1,000+
$0.10962
5,000+
$0.09744
10,000+
$0.08831
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

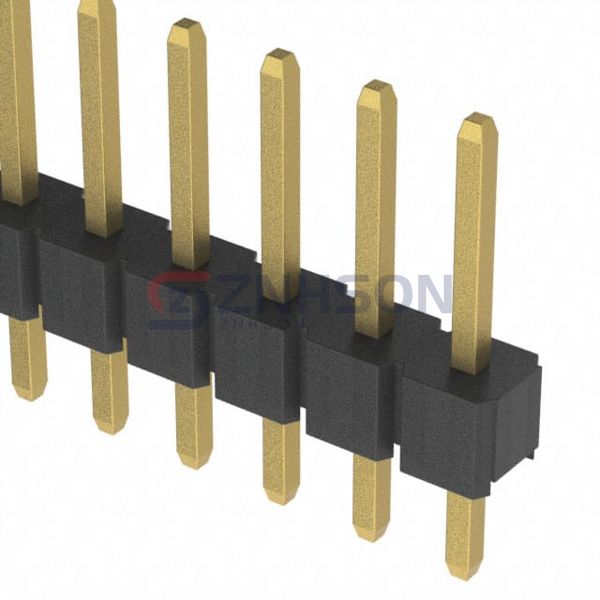

Optimize your interconnections with the PH1-16-UA rectangular connector header from Adam Tech. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PH1-16-UA is perfect for automotive, industrial, and consumer electronics. Adam Tech ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.454" (11.54mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
