PH2-12-UA
Adam Tech
Adam Tech
CONN HEADER VERT 12POS 2.54MM
$0.21
Available to order
Reference Price (USD)
1+
$0.18000
10+
$0.17100
100+
$0.11860
500+
$0.10032
1,000+
$0.08208
5,000+
$0.07296
10,000+
$0.06612
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PH2-12-UA from Adam Tech is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the PH2-12-UA offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Adam Tech for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.235" (5.97mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.453" (11.50mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
Related Products
Samtec Inc.
FTMH-140-02-L-DV-A-P-TR
Samtec Inc.
TSM-120-02-S-DV-LC
Samtec Inc.
TSM-103-01-T-SH-A-K-TR
Mill-Max Manufacturing Corp.
850-90-017-30-001000
Harwin Inc.

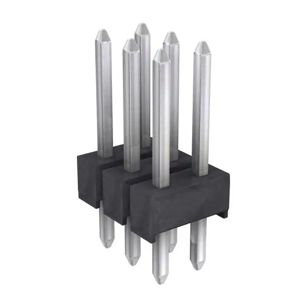

M20-9980346
Samtec Inc.

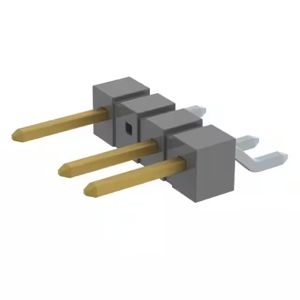

TSM-104-01-L-SH-003
Samtec Inc.

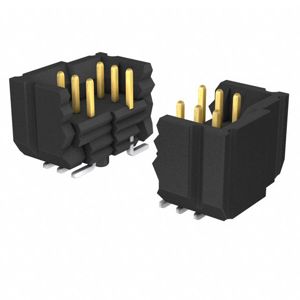

BKT-123-03-F-V-S-A-P-TR
Samtec Inc.

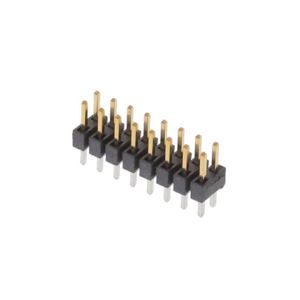

TMMH-108-05-L-D
