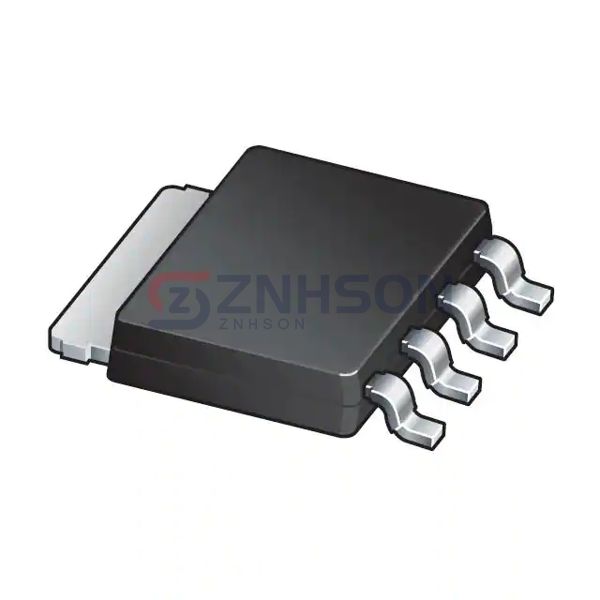

PH3330L,115
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 30V 100A LFPAK56
$0.32
Available to order
Reference Price (USD)
1+
$0.32000
500+
$0.3168
1000+
$0.3136
1500+
$0.3104
2000+
$0.3072
2500+
$0.304
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PH3330L,115 by NXP USA Inc. is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose NXP USA Inc. for innovation you can depend on.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.3mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2.15V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 30.5 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4840 pF @ 12 V
- FET Feature: -
- Power Dissipation (Max): 62.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
