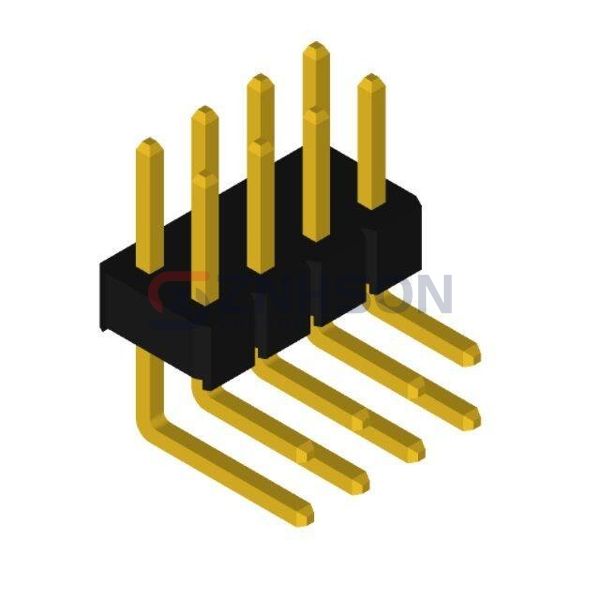

PHDD-RS008G1ABOPA-C072
SUPERIOR TECH
SUPERIOR TECH
MALE HEADER RIGHT ANGLE THROUGH
$0.33
Available to order
Reference Price (USD)
1+
$0.33000
500+
$0.3267
1000+
$0.3234
1500+
$0.3201
2000+
$0.3168
2500+
$0.3135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the PHDD-RS008G1ABOPA-C072 rectangular connector header from SUPERIOR TECH. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the PHDD-RS008G1ABOPA-C072 is perfect for automotive, industrial, and consumer electronics. SUPERIOR TECH ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.154" (3.90mm)
- Contact Length - Post: 0.154" (3.90mm)
- Overall Contact Length: 0.110" (2.80mm)
- Insulation Height: 0.157" (4.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: -
