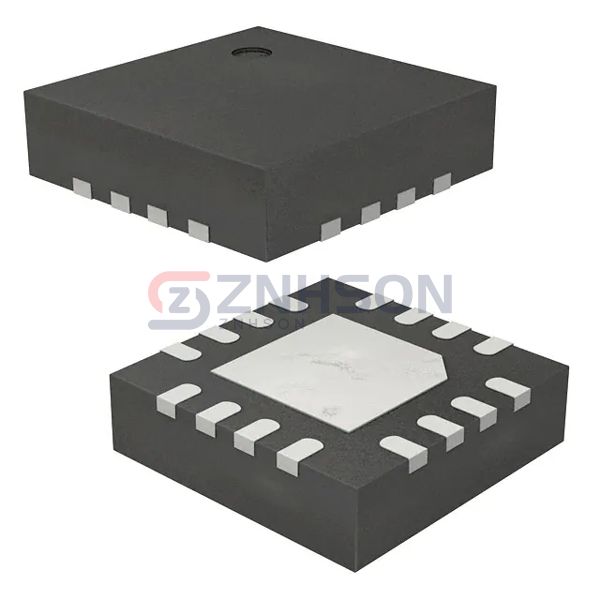

PI3A412ZHEX
Diodes Incorporated
Diodes Incorporated
IC SWITCH QUAD SPDT 16TQFN
$1.50
Available to order
Reference Price (USD)
1+
$1.50000
500+
$1.485
1000+
$1.47
1500+
$1.455
2000+
$1.44
2500+
$1.425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PI3A412ZHEX by Diodes Incorporated represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The PI3A412ZHEX is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 4
- On-State Resistance (Max): 750mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 4.2V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 13ns, 38ns
- -3db Bandwidth: 78MHz
- Charge Injection: 50pC
- Channel Capacitance (CS(off), CD(off)): 20pF, 20pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -97dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad
- Supplier Device Package: 16-TQFN (3x3)
