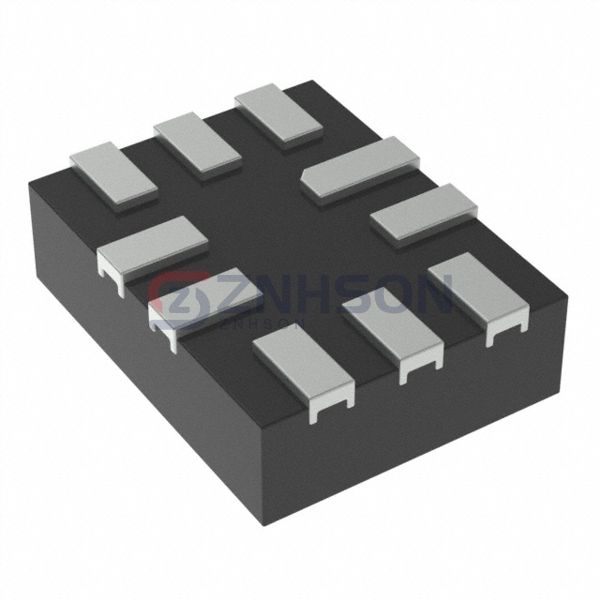

PI3USB4000AZMEX
Diodes Incorporated
Diodes Incorporated
IC SWITCH SPDT SINGLE 10UQFN
$1.54
Available to order
Reference Price (USD)
1+
$1.54000
500+
$1.5246
1000+
$1.5092
1500+
$1.4938
2000+
$1.4784
2500+
$1.463
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Diodes Incorporated's PI3USB4000AZMEX redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The PI3USB4000AZMEX is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 1:2
- Number of Circuits: 1
- On-State Resistance (Max): 8Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm
- Voltage - Supply, Single (V+): 2.7V ~ 6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 100µs, 50ns (Typ)
- -3db Bandwidth: 1GHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF, 9pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -35dB @ 240MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.8x1.4)
