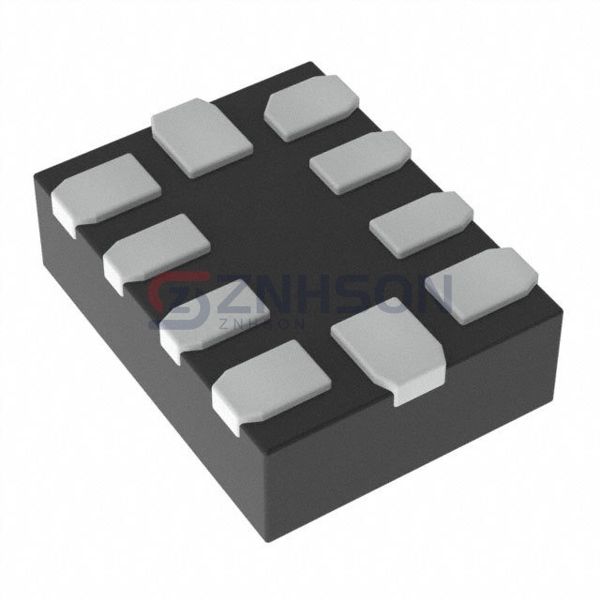

PI3USB4002AQ1ZUAEX
Diodes Incorporated
Diodes Incorporated
USB2 SWITCH U-QFN1520-10 T&R 3K
$1.54
Available to order
Reference Price (USD)
1+
$1.54000
500+
$1.5246
1000+
$1.5092
1500+
$1.4938
2000+
$1.4784
2500+
$1.463
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PI3USB4002AQ1ZUAEX represents Diodes Incorporated's cutting-edge technology in analog signal routing ICs, featuring an innovative charge cancellation technique that eliminates glitches during switching transitions. As part of our specialized Interface components, this device supports both single-ended and differential signal paths with equal precision. Applications span from professional audio mixing consoles to electric vehicle battery management systems, where its <1 typical on-resistance ensures minimal voltage drop. The automotive-qualified version (AEC-Q100) makes it perfect for ADAS sensor arrays and in-vehicle network gateways. Its fail-safe circuitry protects downstream components during hot-swap events.
Specifications
- Product Status: Active
- Switch Circuit: SPST
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 2
- On-State Resistance (Max): 10Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm
- Voltage - Supply, Single (V+): 2.7V ~ 5.5V
- Voltage - Supply, Dual (V±): 2.7V ~ 5.5V
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 1GHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -35dB @ 240MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFQFN
- Supplier Device Package: 10-UQFN (1.5x2)
