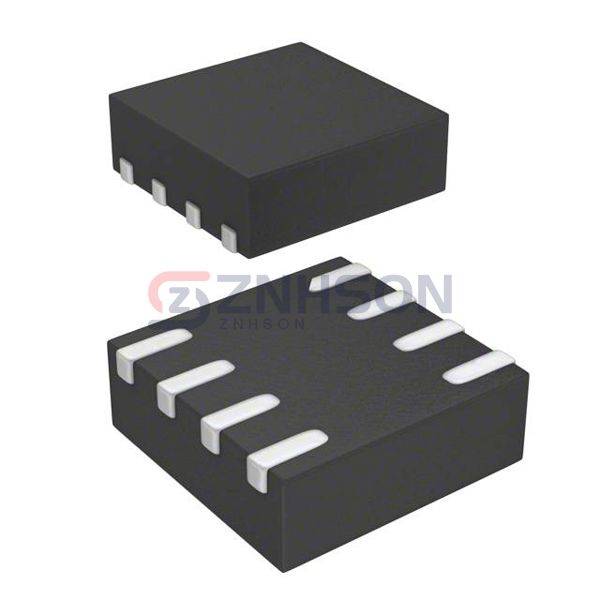

PI4ULS3V502XVEX
Diodes Incorporated
Diodes Incorporated
IC TRNSLTR BIDIRECTIONAL 8UDFN
$0.45
Available to order
Reference Price (USD)
3,000+
$0.47520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PI4ULS3V502XVEX from Diodes Incorporated redefines expectations for Logic Translator ICs in the Integrated Circuits category. With its innovative architecture, this level shifter handles asymmetric voltage translations (e.g., 1.8V to 5V) without additional components. The integrated slew rate control minimizes EMI, while the fail-safe I/O protection prevents damage from voltage spikes. Typical deployments include agricultural IoT (connecting 3V soil sensors to 5V LoRa transceivers), vending machines (interface between currency validators and main controllers), and building automation (bridging different voltage domain subsystems).
Specifications
- Product Status: Active
- Translator Type: Voltage Level
- Channel Type: Bidirectional
- Number of Circuits: 1
- Channels per Circuit: 2
- Voltage - VCCA: 0.85 V ~ 2.7 V
- Voltage - VCCB: 1.35 V ~ 3.6 V
- Input Signal: -
- Output Signal: -
- Output Type: Non-Inverted
- Data Rate: 200Mbps
- Operating Temperature: -40°C ~ 85°C (TA)
- Features: Auto-Direction Sensing, Power-Off Protection
- Mounting Type: Surface Mount
- Package / Case: 8-UFDFN
- Supplier Device Package: 8-UDFN (1.6x1.2)
