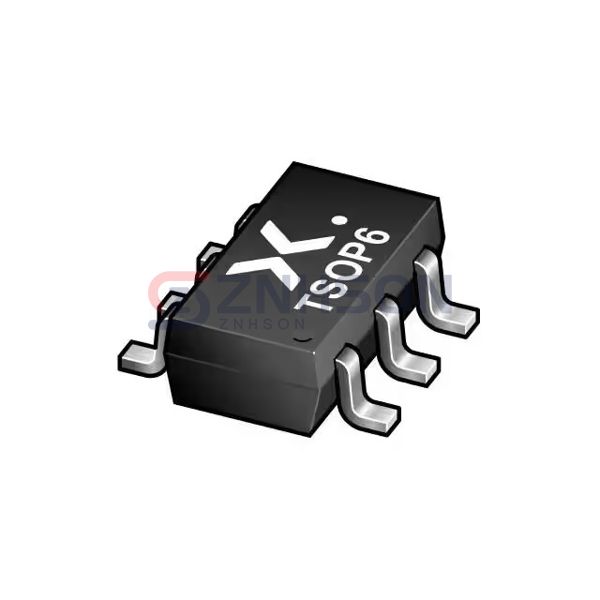

PIMC32-QX
Nexperia USA Inc.
Nexperia USA Inc.
TRANS PREBIAS 1NPN 1PNP 6TSOP
$0.45
Available to order
Reference Price (USD)
1+
$0.45000
500+
$0.4455
1000+
$0.441
1500+
$0.4365
2000+
$0.432
2500+
$0.4275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Nexperia USA Inc.'s PIMC32-QX, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The PIMC32-QX is widely used in lighting systems, portable electronics, and automotive accessories. Nexperia USA Inc.'s innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the PIMC32-QX is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Active
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 500mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 2.2kOhms
- Resistor - Emitter Base (R2): 10kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 225MHz, 140MHz
- Power - Max: 290mW
- Mounting Type: Surface Mount
- Package / Case: SC-74, SOT-457
- Supplier Device Package: 6-TSOP
