PJA7002H_R1_00001
Panjit International Inc.
Panjit International Inc.

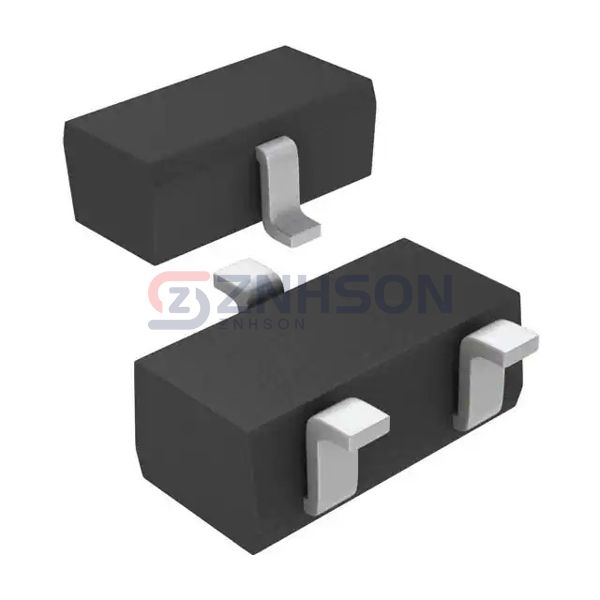

SOT-23, MOSFET
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJA7002H_R1_00001 from Panjit International Inc. sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Panjit International Inc.'s PJA7002H_R1_00001 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 300mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 5Ohm @ 300mA, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.3 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 22 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23
- Package / Case: TO-236-3, SC-59, SOT-23-3
