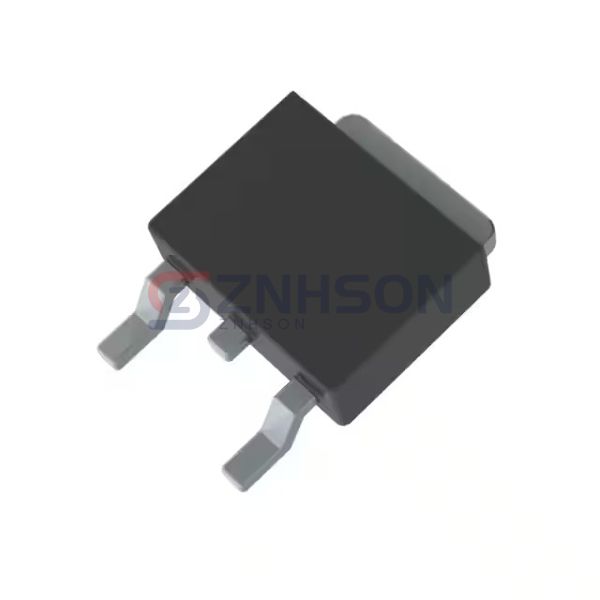

PJD7NA60_R2_00001
Panjit International Inc.
Panjit International Inc.
600V N-CHANNEL MOSFET
$1.27
Available to order
Reference Price (USD)
1+
$1.27000
500+
$1.2573
1000+
$1.2446
1500+
$1.2319
2000+
$1.2192
2500+
$1.2065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJD7NA60_R2_00001 single MOSFET from Panjit International Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PJD7NA60_R2_00001 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.2Ohm @ 3.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 15.2 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 723 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252AA
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
