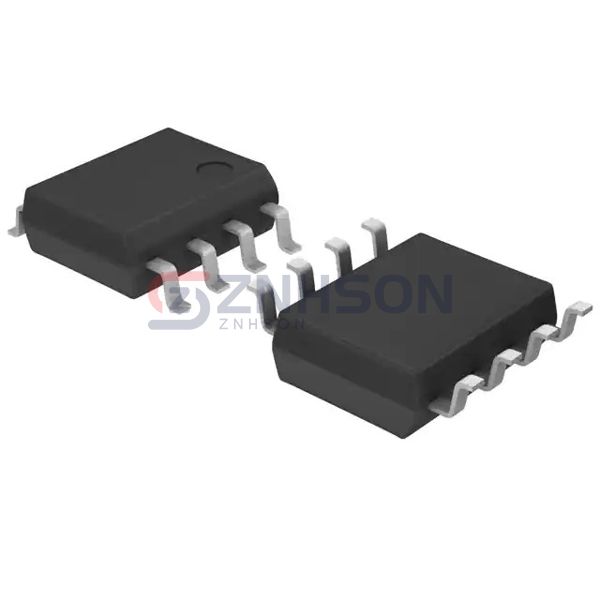

PJL9422_R2_00001
Panjit International Inc.
Panjit International Inc.
40V N-CHANNEL ENHANCEMENT MODE M
$0.64
Available to order
Reference Price (USD)
1+
$0.64000
500+
$0.6336
1000+
$0.6272
1500+
$0.6208
2000+
$0.6144
2500+
$0.608
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJL9422_R2_00001 single MOSFET from Panjit International Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PJL9422_R2_00001 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 13A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1759 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOP
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
