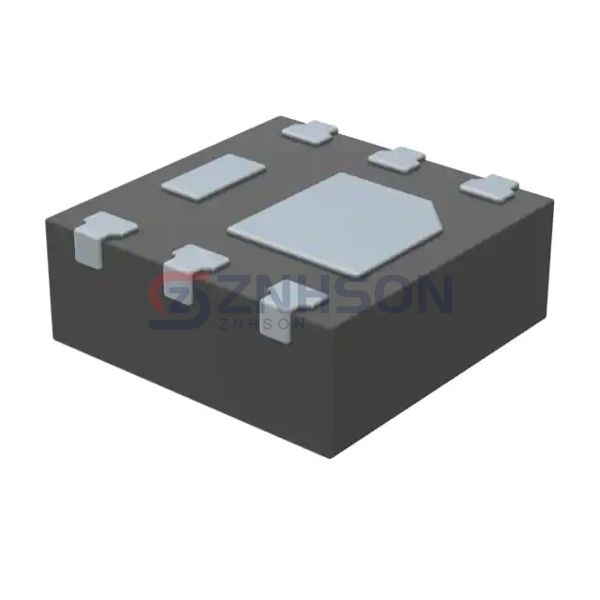

PJQ2422_R1_00001
Panjit International Inc.
Panjit International Inc.
DFN2020B-6L, MOSFET
$0.47
Available to order
Reference Price (USD)
1+
$0.47000
500+
$0.4653
1000+
$0.4606
1500+
$0.4559
2000+
$0.4512
2500+
$0.4465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the PJQ2422_R1_00001 by Panjit International Inc., a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The PJQ2422_R1_00001 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Panjit International Inc..
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 18mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.3 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 392 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN2020B-6
- Package / Case: 6-WDFN Exposed Pad
Related Products
onsemi
SFT1423-S-TL-E
Nexperia USA Inc.
BUK78150-55A/CUX
onsemi
FDP2552
Toshiba Semiconductor and Storage
SSM3K339R,LF
STMicroelectronics
STD36P4LLF6
Vishay Siliconix
SIHA14N60E-GE3
Infineon Technologies
IRFU5505PBF

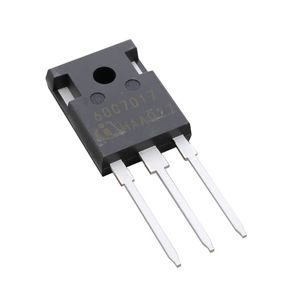

Infineon Technologies
IPW60R017C7XKSA1

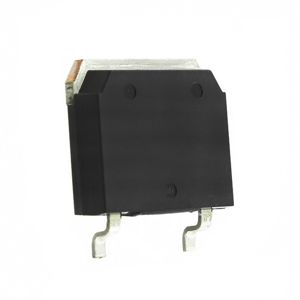

IXYS
