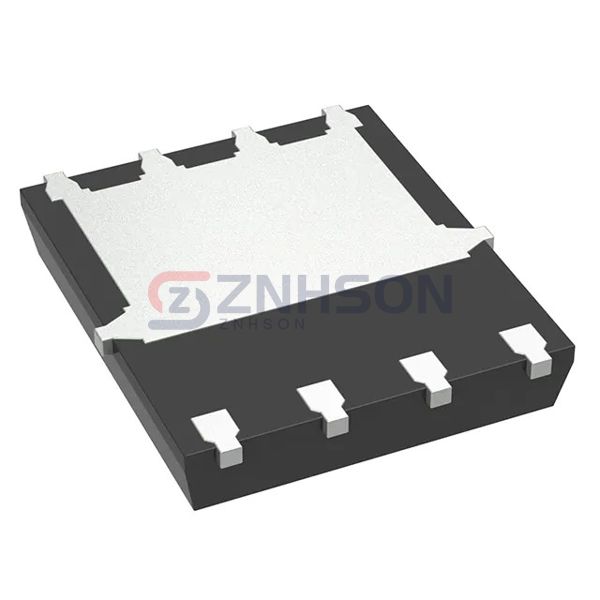

PJQ5445_R2_00001
Panjit International Inc.
Panjit International Inc.
40V P-CHANNEL ENHANCEMENT MODE M
$0.90
Available to order
Reference Price (USD)
1+
$0.90000
500+
$0.891
1000+
$0.882
1500+
$0.873
2000+
$0.864
2500+
$0.855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJQ5445_R2_00001 single MOSFET from Panjit International Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PJQ5445_R2_00001 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 8.5A (Ta), 45A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 17mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2030 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta), 63W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN5060-8
- Package / Case: 8-PowerVDFN
