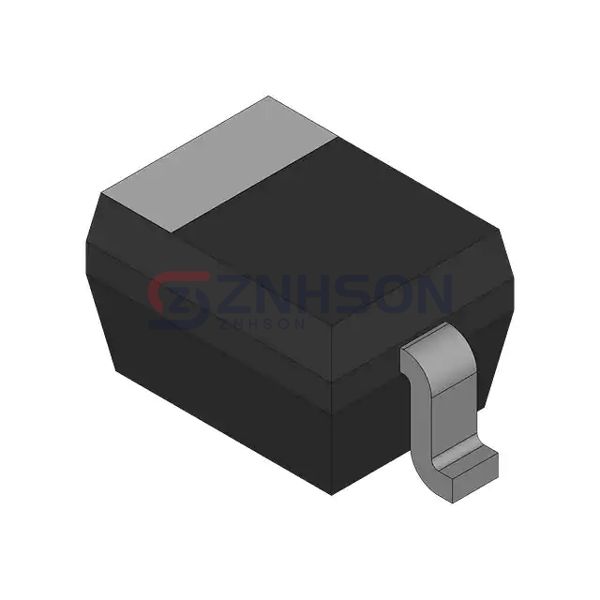

PJSD05CW_R1_00001
Panjit International Inc.
Panjit International Inc.
SINGLE LINE TVS DIODE FOR ESD PR
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJSD05CW_R1_00001 by Panjit International Inc. is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the PJSD05CW_R1_00001 can secure CAN bus lines in vehicles against voltage spikes. Rely on Panjit International Inc. for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 6.37V
- Voltage - Clamping (Max) @ Ipp: 14.5V
- Current - Peak Pulse (10/1000µs): 24A (8/20µs)
- Power - Peak Pulse: 350W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 200pF @ 1MHz (Max)
- Operating Temperature: -55°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SOD-323
