PJSD12W-AU_R1_000A1
Panjit International Inc.
Panjit International Inc.
SINGLE LINE TVS DIODE FOR ESD PR
$0.45
Available to order
Reference Price (USD)
1+
$0.45000
500+
$0.4455
1000+
$0.441
1500+
$0.4365
2000+
$0.432
2500+
$0.4275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJSD12W-AU_R1_000A1 by Panjit International Inc. is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the PJSD12W-AU_R1_000A1 can secure CAN bus lines in vehicles against voltage spikes. Rely on Panjit International Inc. for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 13.3V
- Voltage - Clamping (Max) @ Ipp: 19V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: 350W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 130pF @ 1MHz
- Operating Temperature: -50°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SOD-323
Related Products
Bourns Inc.
SMAJ22CA-Q
Microchip Technology
JANTXV1N6468US/TR
Vishay General Semiconductor - Diodes Division
P4KE39CA-E3/73
Taiwan Semiconductor Corporation
1.5KE16CAH
YAGEO
SMDJ75A/TR13
Diodes Incorporated
D5V0F2B3LP10-7
Vishay General Semiconductor - Diodes Division
SMCG90AHE3/57T
Bourns Inc.
CD214B-T33CALF
Panjit International Inc.

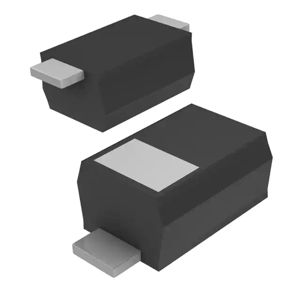

P4FL54A-AU_R1_000A1
