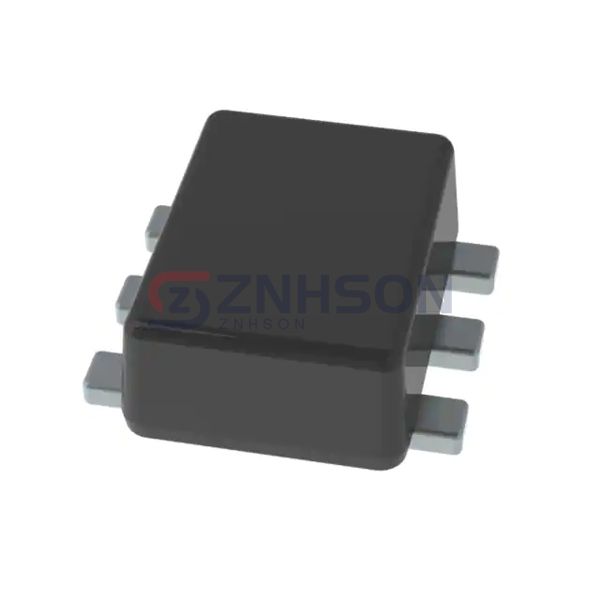

PJX8601_R1_00001
Panjit International Inc.
Panjit International Inc.
COMPLEMENTARY ENHANCEMENT MODE M
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the PJX8601_R1_00001, a premium Transistors - FETs, MOSFETs - Arrays product from Panjit International Inc.. This Discrete Semiconductor Products component is designed for optimal power handling and efficiency, featuring advanced technology to reduce switching losses. Suitable for applications such as DC-DC converters, audio amplifiers, and robotics, the PJX8601_R1_00001 delivers consistent and reliable operation. Panjit International Inc.'s dedication to excellence ensures this MOSFET array meets the highest industry standards.
Specifications
- Product Status: Active
- FET Type: N and P-Channel Complementary
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
- Rds On (Max) @ Id, Vgs: 400mOhm @ 500mA, 4.5V, 1.2Ohm @ 500mA, 4.5V
- Vgs(th) (Max) @ Id: 900mV @ 250µA, 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 1.4nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 67pF @ 10V, 38pF @ 10V
- Power - Max: 300mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
Related Products
onsemi
NTMD6P02R2SG
Vishay Siliconix

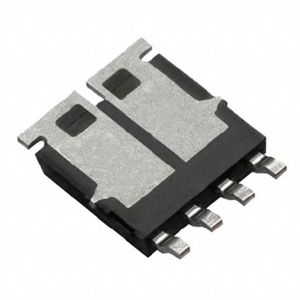

SQJB70EP-T1_GE3
Fairchild Semiconductor

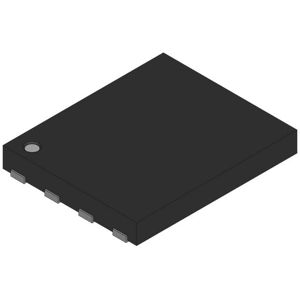

FDMS3606AS
Nexperia USA Inc.

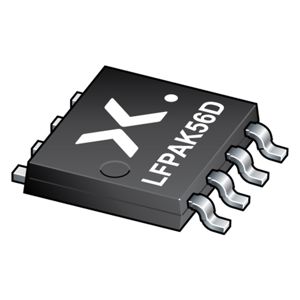

BUK9K89-100E,115
Fairchild Semiconductor
FDW2503N
Rohm Semiconductor

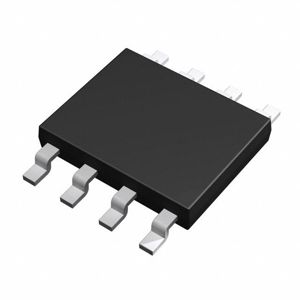

SH8K25GZ0TB
Rohm Semiconductor

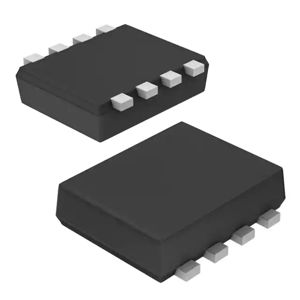

QH8KB6TCR
