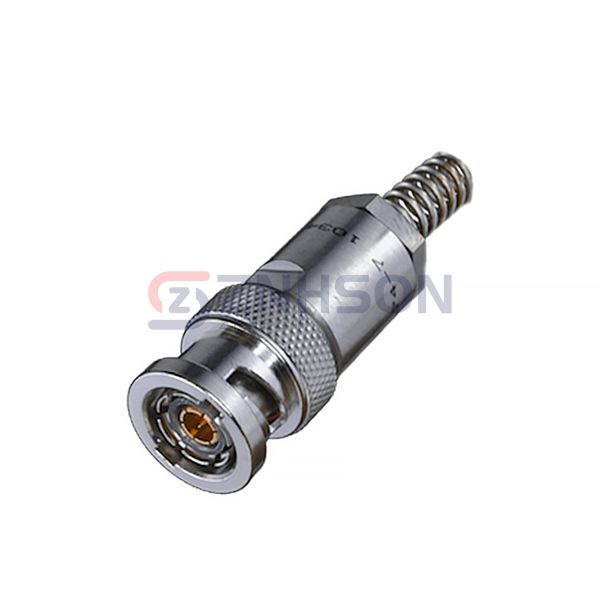

PL74-47BR
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter
CONN TRB PLUG STR SOLDER
$39.77
Available to order
Reference Price (USD)
1+
$37.38000
10+
$33.74200
25+
$32.32720
50+
$30.90100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Cinch Connectivity Solutions Trompeter's PL74-47BR series elevates Coaxial Connectors (RF) technology with groundbreaking features. These connectors employ hyperbolic contact profiles that ensure consistent electrical performance through extended mating cycles. The product range includes EMI-filtered versions for sensitive electronic environments and high-voltage variants for specialized applications. Notable characteristics: Frequency range from DC to 70GHz Multi-finger beryllium copper contacts Corrosion-resistant stainless steel bodies Customizable keying options. The PL74-47BR is extensively used in: Electronic intelligence systems Particle accelerator components Millimeter-wave imaging arrays Submarine communication systems. Its patented anti-microphonic design makes it particularly suitable for vibration-intensive aerospace applications.
Specifications
- Product Status: Active
- Connector Style: TRB, Twinaxial/Triaxial
- Connector Type: Plug, Male Pin (Concentric)
- Contact Termination: Solder
- Shield Termination: Wrench Clamp
- Impedance: Non-Constant
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: M17/176-00002
- Fastening Type: Bayonet Lock
- Frequency - Max: 500 MHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
