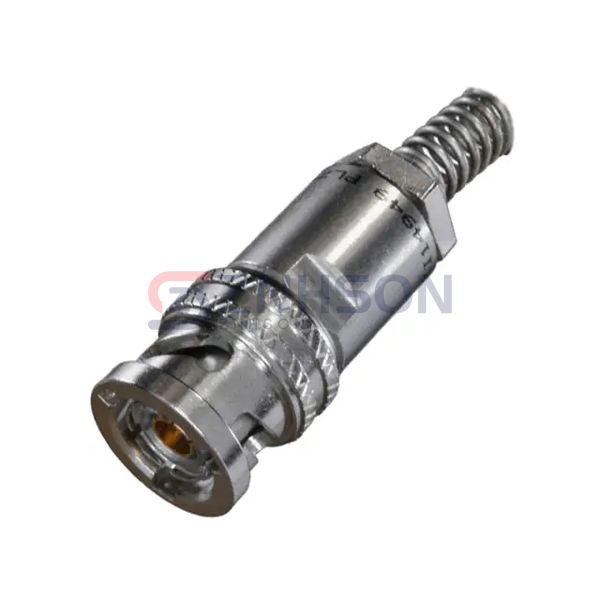

PL75-47BR
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter
CONN TRB PLUG STR SOLDER
$37.86
Available to order
Reference Price (USD)
1+
$37.38000
10+
$33.74200
25+
$32.32720
50+
$30.90100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PL75-47BR from Cinch Connectivity Solutions Trompeter represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The PL75-47BR variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: TRB, Twinaxial/Triaxial
- Connector Type: Plug, Male Pin (Concentric)
- Contact Termination: Solder
- Shield Termination: Wrench Clamp
- Impedance: Non-Constant
- Mounting Type: Free Hanging (In-Line)
- Mounting Feature: -
- Cable Group: M17/176-00002
- Fastening Type: Bayonet Lock
- Frequency - Max: 500 MHz
- Number of Ports: 1
- Features: Three Lug
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
