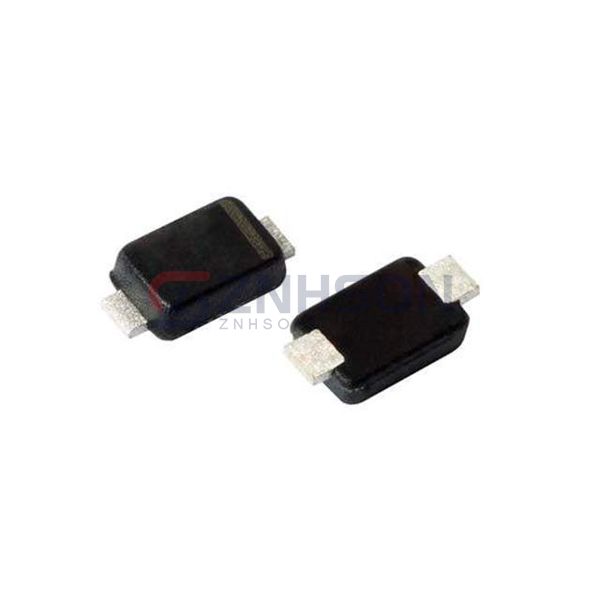

PLZ22C-HG3_A/H
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 22V 500MW DO219AC
$0.05
Available to order
Reference Price (USD)
1+
$0.04937
500+
$0.0488763
1000+
$0.0483826
1500+
$0.0478889
2000+
$0.0473952
2500+
$0.0469015
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PLZ22C-HG3_A/H by Vishay General Semiconductor - Diodes Division is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the PLZ22C-HG3_A/H is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±3%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 30 Ohms
- Current - Reverse Leakage @ Vr: 200 nA @ 17 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-219AC
- Supplier Device Package: DO-219AC (microSMF)
Related Products
Microchip Technology
JANTXV1N969BUR-1/TR
Central Semiconductor Corp
CMDZ5252B TR PBFREE
Micro Commercial Co
BZT52C3V3-TP
onsemi
1N5375BG
Microchip Technology
1N751AUR-1
Diotec Semiconductor
BZT52B6V8
Microchip Technology
1N5915BUR-1
Taiwan Semiconductor Corporation

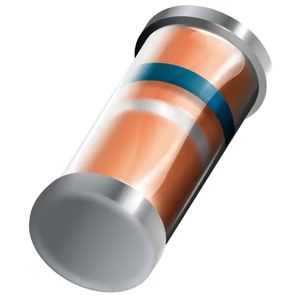

ZM4757A L0G
Vishay General Semiconductor - Diodes Division

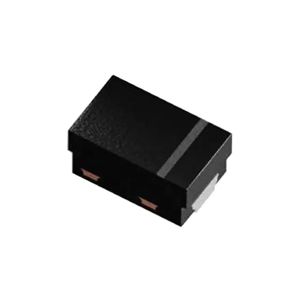

BZX884B15L-HG3-08
