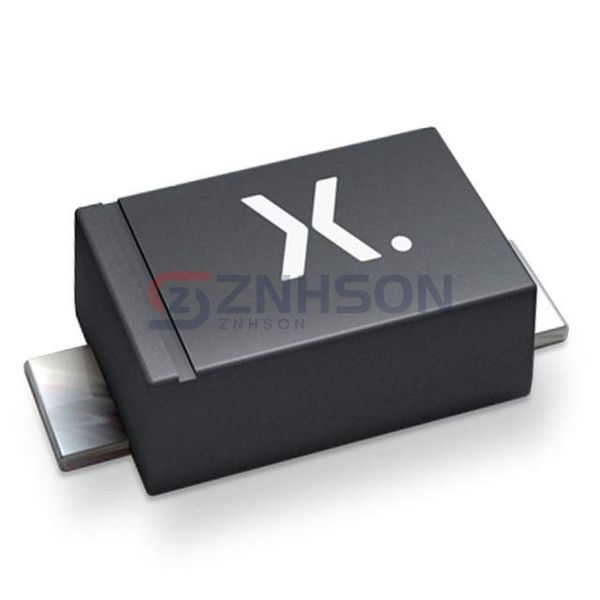

PMEG10020ELR-QX
Nexperia USA Inc.
Nexperia USA Inc.
SCHOTTKYS IN CFP PACKAGES
$0.11
Available to order
Reference Price (USD)
1+
$0.11444
500+
$0.1132956
1000+
$0.1121512
1500+
$0.1110068
2000+
$0.1098624
2500+
$0.108718
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMEG10020ELR-QX from Nexperia USA Inc. is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Nexperia USA Inc.'s dedication to quality means the PMEG10020ELR-QX meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 2A
- Voltage - Forward (Vf) (Max) @ If: 830 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 3.7 ns
- Current - Reverse Leakage @ Vr: 150 nA @ 100 V
- Capacitance @ Vr, F: 70pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-123W
- Supplier Device Package: SOD-123W
- Operating Temperature - Junction: 175°C
