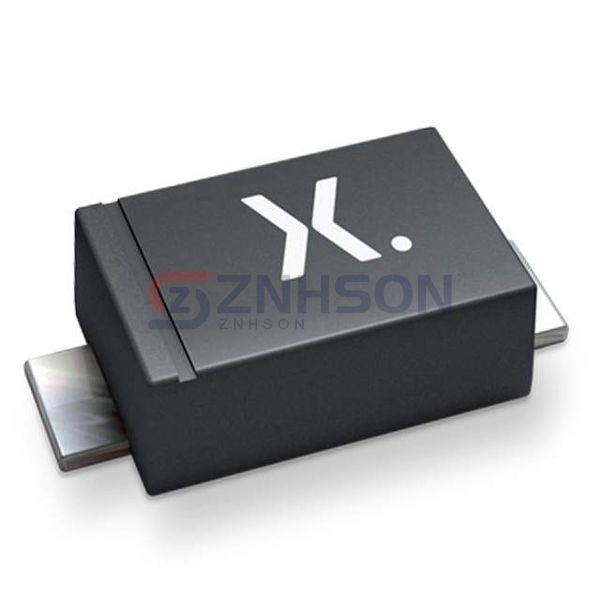

PMEG120G10ELR-QX
Nexperia USA Inc.
Nexperia USA Inc.
SIGE RECTIFIERS IN CFP PACKAGES
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the PMEG120G10ELR-QX single rectifier diode from Nexperia USA Inc.. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the PMEG120G10ELR-QX delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Nexperia USA Inc.'s PMEG120G10ELR-QX is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 840 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 12 ns
- Current - Reverse Leakage @ Vr: 30 nA @ 120 V
- Capacitance @ Vr, F: 36pF @ 1V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-123W
- Supplier Device Package: SOD-123W
- Operating Temperature - Junction: 175°C
Related Products
Vishay General Semiconductor - Diodes Division
VS-12FL80S05
SMC Diode Solutions
ER3E
STMicroelectronics
BAT48JFILM
Microchip Technology
JAN1N5623US/TR
Vishay General Semiconductor - Diodes Division
GP10-4003-E3/54
Vishay General Semiconductor - Diodes Division
V8P20-M3/86A
Taiwan Semiconductor Corporation

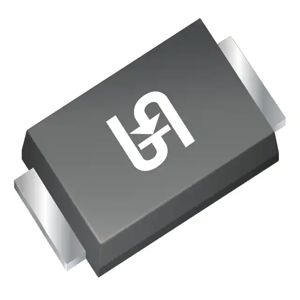

S2GFS
Microchip Technology

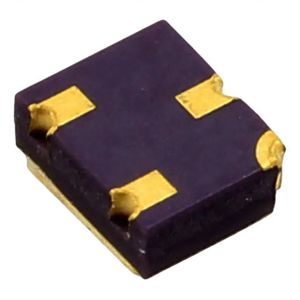

JANTXV1N6642UBCA/TR
Vishay General Semiconductor - Diodes Division

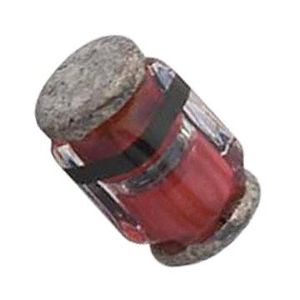

MCL103A-TR3
