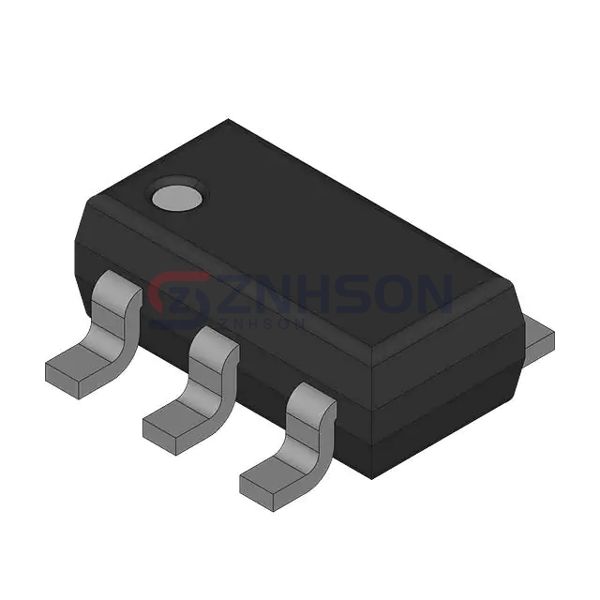

PMN80XP,115
NXP USA Inc.
NXP USA Inc.
MOSFET P-CH 20V 2.5A 6TSOP
$0.05
Available to order
Reference Price (USD)
3,000+
$0.08910
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMN80XP,115 single MOSFET from NXP USA Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PMN80XP,115 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 102mOhm @ 2.5A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 7.5 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 550 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 385mW (Ta), 4W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-TSOP
- Package / Case: SC-74, SOT-457
