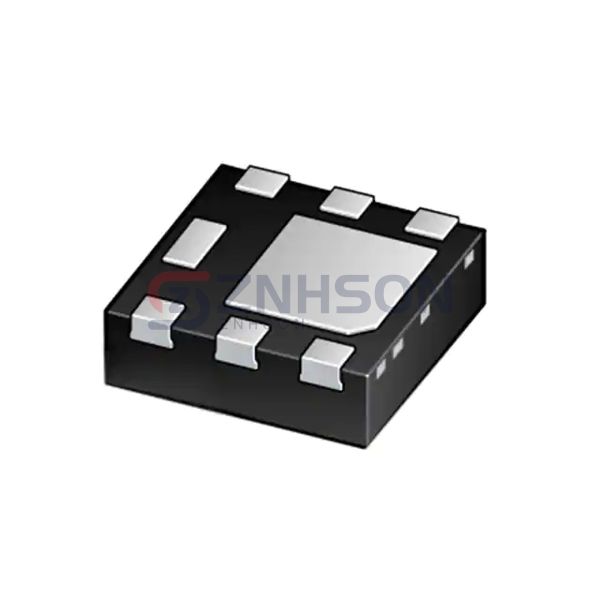

PMPB10XNEAX
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 20V 9A DFN2020MD-6
$0.17
Available to order
Reference Price (USD)
3,000+
$0.17050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMPB10XNEAX by Nexperia USA Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the PMPB10XNEAX is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 14mOhm @ 9A, 4.5V
- Vgs(th) (Max) @ Id: 0.9V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 34 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 2175 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.7W (Ta), 12.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN2020MD-6
- Package / Case: 6-UDFN Exposed Pad
Related Products
onsemi
NTR5198NLT1G
Harris Corporation
IRFP150
Infineon Technologies
IPD60R600C6ATMA1
STMicroelectronics
STF3NK80Z
Infineon Technologies
BSC034N06NSATMA1
Renesas Electronics America Inc
NP100N055PUK-E1-AY
Diodes Incorporated
DMTH47M2LPSWQ-13
Fairchild Semiconductor

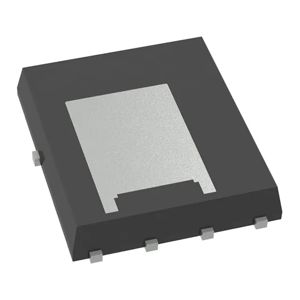

FDMS2504SDC
